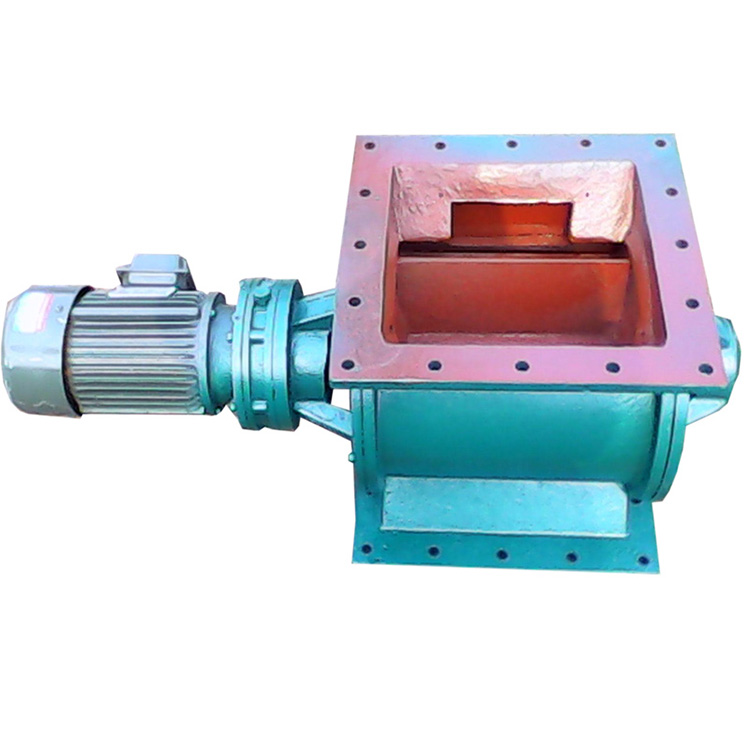

Muaj plua plav collector tso tawm cov khoom siv uas tsis tshua muaj siab casting lub cev muaj zog YJD teb airlock valve tsim
Lus piav qhia luv luv:
Muaj plua plav collector tso tawm cov khoom siv uas tsis tshua muaj siab casting lub cev muaj zog YJD
rotary airlock valve tsim
Product Description
Airlock valve, tseem hu ua paug valve, lub hnub qub discharger, cindervalve, yog ib qho khoom siv tseem ceeb rau pneumatic conveying system thiab plua plav tshem tawm.
Nws yog tsuas yog siv los tso tawm cov khoom tsis tu ncua los ntawm tripper thiab plua plav collector, thiab xyuas kom meej lub siab sab hauv tsis raug rau huab cua siab evironment.

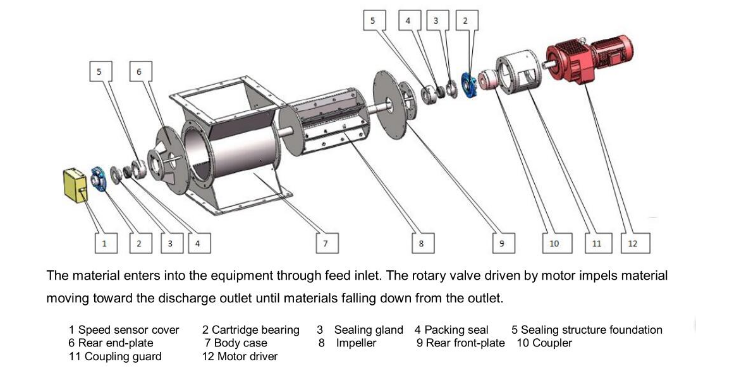

Lub airlock valve yog ua los ntawm iav lub cev muaj zog, sealing lub caij, impellers thiab rotor vaj tse nyob rau hauv uas muaj ntau rotating hniav yog teem. siv hauv tshuaj, chaw muag tshuaj, ziab, nplej, cement, kev tiv thaiv ib puag ncig thiab kev lag luam fais fab thiab lwm yam.
Txoj Cai Ua Haujlwm:
Nyob rau hauv pneumatic conveying system, lub airlock valve tuaj yeem kaw cov cua thiab cov khoom siv tsis tu ncua.Qhov qis qis ntawm lub rotor thiab qhov chaw me me tuaj yeem tiv thaiv cov huab cua los ntawm kev thim rov qab, thiab xyuas kom muaj huab cua ruaj khov thiab tsis tu ncua ntawm cov khoom siv.Lub arilock valve ua raws li cov khoom tawm hauv cov khoom siv.
| QauvLub npe Cov ntaub ntawv | YJD | YJD | YJD | YJD | YJD | YJD | YJD | YJD | YJD | YJD | YJD | YJD | |
| Unloader L/r | 2 | 4 | 6 | 8 | 10 | 12 | 14 | 16 | 18 | 20 | 26 | 30 | |
| Unloader m³ / h | 4.08 Nws | 8.16 ib | 12.24 Nws | 16.32 Nws | 20.4 ib | 24.48 Nws | 28.56 Nws | 36.64 ib | 36.72 ib | 40.8 ib | 50.64 ib | 61.2 ib | |
| Sab hauv txoj kab uas hla mm | 150 | 180 | 200 | 220 | 240 | 260 | 280 | 300 | 320 | 340 | 400 | 440 | |
| r / min | Hom Z | 25-40 (tus qauv ceev: 34r / min) | |||||||||||
| Ua haujlwm kub ° C | T ≤80 ° C T ≤200 ° C | ||||||||||||
| Khoom siv | Hmoov, granular | ||||||||||||
| Hluav taws xob tshuab | Qauv | y801 ua | Y802-4 | Y90S-4 | Y90L-4 | Y100L1-4 | Y100L2-4 | ||||||
| KW | 0.55 ib | 0.75 ib | 1.1 | 1.5 | 2.2 | 3 | |||||||
| r / min | 1390 ib | 1400 | 1430 ib | ||||||||||
| Nyhav kg | 53 | 71 | 86 | 101 | 121 | 141 | 161 | 181 | 191 | 221 | 251 | 301 | |
Kev Lag Luam Ua Haujlwm

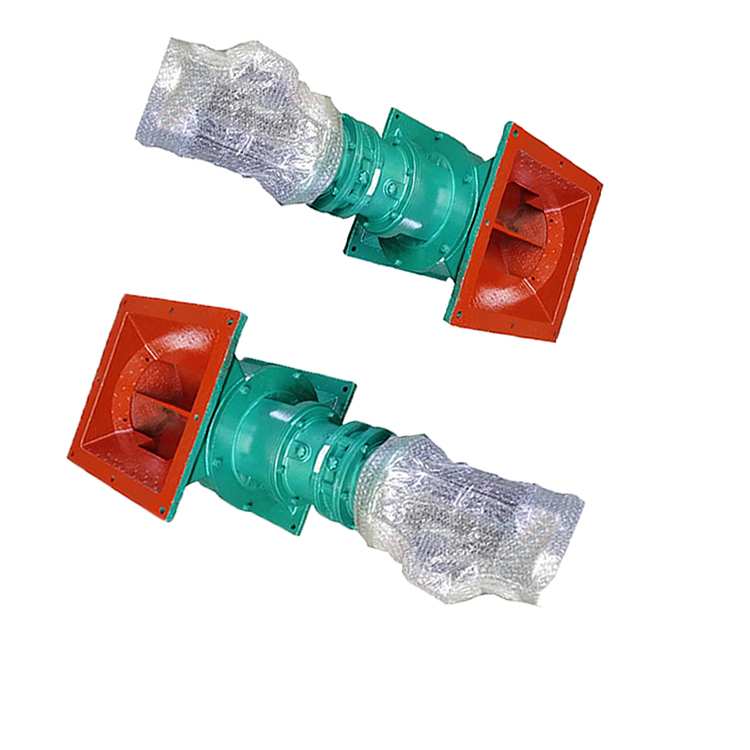

Packing & Shipping
YJD-A / B series unloading ntaus ntawv, tseem hu ua hluav taws xob tshauv unloading valve thiab hluav taws xob xauv valve, muaj peb yam: lub cev muaj zog, hniav sib txawv planetary reducer (X) los yog pinwheel cycloid reducer (Z) thiab rotary unloader.Muaj ob series thiab 60 specifications
Cov square flanges ntawm ntshuam thiab xa tawm yog hom A, thiab cov flanges ncig yog hom B
Cov cuab yeej yog cov khoom siv tshem tawm plua plav, cov khoom siv tseem ceeb rau kev xa tawm, tshem tawm cov hmoov tshauv, xauv cua thiab lwm yam khoom noj.Nws yog tsim rau cov khoom siv hmoov thiab granular.Kev teeb tsa loj yog ua raws li txhua yam ntawm cov khoom siv plua plav, uas yog siv dav hauv kev tiv thaiv ib puag ncig, mining, metallurgy, tshuaj lom neeg kev lag luam, nplej, tshuaj lom neeg thiab lwm yam kev lag luam.
Cov motors tshwj xeeb, xws li tawg-pov thawj, zaus hloov kho, kev tswj ceev thiab marine motors, tuaj yeem teeb tsa raws li kev xav tau ntawm cov neeg siv kom ua tau raws li cov neeg siv khoom tshwj xeeb.Cov khoom siv kuj tuaj yeem ua tiav raws li qhov xav tau ntawm cov neeg siv khoom, xws li cov av noo tsis kam, tiv thaiv corrosion, stainless hlau, hloov tau yooj yim, tawg-pov thawj impellers, thiab lwm yam.
Technical parameters ntawm A / BX / Z YJD unloader:
| Qauv Cov ntaub ntawv npe | YJD | YJD | YJD | YJD | YJD | YJD | YJD | YJD | YJD | YJD | YJD | YJD | |
| Unloader L/r | 2 | 4 | 6 | 8 | 10 | 12 | 14 | 16 | 18 | 20 | 26 | 30 | |
| Unloader m³ / h | 4.08 Nws | 8.16 ib | 12.24 Nws | 16.32 Nws | 20.4 ib | 24.48 Nws | 28.56 Nws | 36.64 ib | 36.72 ib | 40.8 ib | 50.64 ib | 61.2 ib | |
| Sab hauv txoj kab uas hla mm | 150 | 180 | 200 | 220 | 240 | 260 | 280 | 300 | 320 | 340 | 400 | 440 | |
| r / min | Hom Z | 25-40 (tus qauv ceev: 34r / min) | |||||||||||
| Ua haujlwm kub ° C | T ≤80 ° C T ≤200 ° C | ||||||||||||
| Khoom siv | Hmoov, granular | ||||||||||||
| Hluav taws xob tshuab | Qauv | y801 ua | Y802-4 | Y90S-4 | Y90L-4 | Y100L1-4 | Y100L2-4 | ||||||
| KW | 0.55 ib | 0.75 ib | 1.1 | 1.5 | 2.2 | 3 | |||||||
| r / min | 1390 ib | 1400 | 1430 ib | ||||||||||
| Nyhav kg | 53 | 71 | 86 | 101 | 121 | 141 | 161 | 181 | 191 | 221 | 251 | 301 | |
