Oblique insertion ntsug insertion mem tes lim cartridge plua plav collector
Lus piav qhia luv luv:
Oblique insertion ntsug insertion mem tes lim cartridge plua plav collector
Product Description:

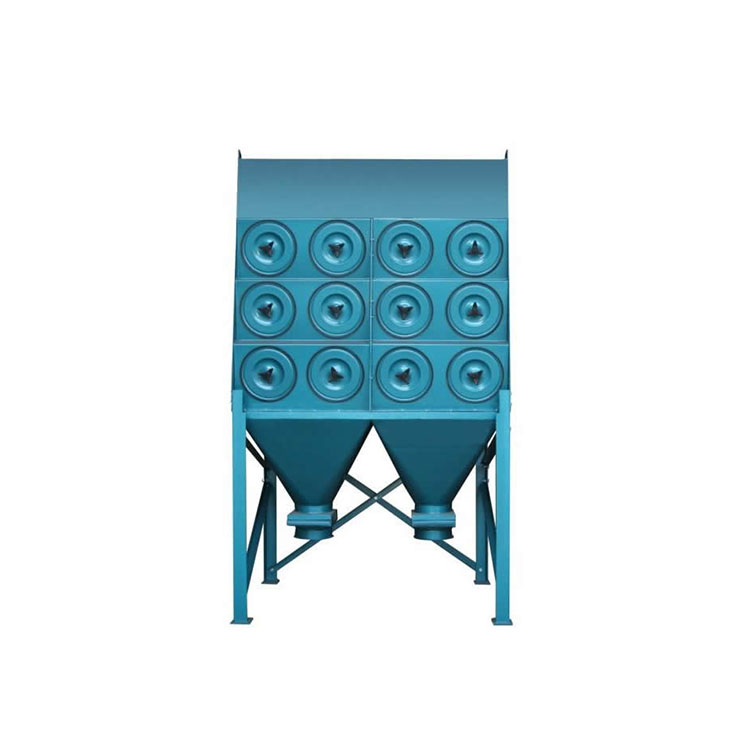

PTL series submersible loj-scale lim cartridge plua plav collector
Optimized tsim, ntxiv tawg-pov thawj qhov chaw nres nkoj, xaiv txoj kev tso tawm,
Txoj hauj lwm ntawm cov cua nkag ntawm cov pa cua tuaj yeem hloov kho raws li tus neeg siv lub xaib.
Airbag thiab mem tes valve, oblique plug-in ceev qhib thiab kaw lim npog, txuam
Kev soj ntsuam kev nyab xeeb ntaiv yog qhov yooj yim heev rau kev tshuaj xyuas thiab kho.
1. Industrial cartridge plua plav collector yog qhov zoo heev rau synch cov tshauv hauv cov txheej txheem ua haujlwm.
2. Cov plua plav cua nkag yuav tsum tau nruab nrog cov plua plav plua plav los tiv thaiv cov plua plav los ntawm kev cuam tshuam ncaj qha rau lub tog raj kheej lim, yog li ncua kev pabcuam lub neej ntawm lub lim cartridge.
3. Cov qauv tsim thiab cov hneev taw me me.
4. Lub tog raj kheej lim yog inclined thiab tub rau khoom ntsia, uas tuaj yeem ua rau cov cartridge tshem tawm thiab hloov tau yooj yim dua.
5. Rau cov plua plav dav dav, lub tshuab lim lim tuaj yeem siv tau ntev yam tsis muaj kev hloov pauv, uas yuav txuag tau qhov kev ua haujlwm tsis zoo ntawm lub hnab lim uas feem ntau siv, thiab txuag tau nyiaj ntau ntawm kev saib xyuas.
6. Lub Industrial cartridge plua plav collector yog ib qho kev sib xyaw ua ke, thiab nws qhov loj yog xaiv tau.Qhov kev sib xyaw thawj zaug tuaj yeem nthuav dav kom nce cov plua plav tshem tawm tsis muaj kev hloov pauv ntau rau cov khoom qub.
Khoom specifications
| Cov khoom siv lim: | Polyester fiber ntau PTFE |
| Cov khoom siv plhaub: | Galvanized steel phaj;stainless hlau;plated steel ntawv; Yas |
| OEM & ODM: | Muab OEM & ODM |
| Qauv: | Muab cov qauv |
| Customization: | Muab cov kev pabcuam customization |
| Filtration raug: | 0.3-180 hli |
| Loj: | 350 * 900 hli |
Daim ntawv thov
Ntim thiab shipping
Khoom piav qhia:
PTL series submersible loj-scale lim cartridge plua plav collector yog ntau lub log
Optimized tsim, ntxiv tawg-pov thawj qhov chaw nres nkoj, xaiv txoj kev tso tawm,
Txoj hauj lwm ntawm cov cua nkag ntawm cov pa cua tuaj yeem hloov kho raws li tus neeg siv lub xaib.
Airbag thiab mem tes valve, oblique plug-in ceev qhib thiab kaw lim npog, txuam
Kev soj ntsuam kev nyab xeeb ntaiv yog qhov yooj yim heev rau kev tshuaj xyuas thiab kho.
Scope ntawm daim ntawv thov
Haum rau foundries, shipyards, painting nroj tsuag, steel qauv nroj tsuag, pob zeb cov ntaub ntawv Cog, grain ua cog, hmoov metallurgy cog, tshuaj nroj tsuag, mining nroj tsuag, centralized plua plav sau thiab kho nyob rau hauv lwm qhov chaw.
Technical parameter
1. Lim cheeb tsam: 140 ㎡;lim cua ceev: 0.02m / s;filtering efficiency: ≥99.95% 18 pcs ∮320 * 665 lim cartridges
2. Cua ntim: 9500-13000m³ / h Ntxuam cua siab: tag nrho siab 2.6Kpa
3. Cov ntsiab lus ntawm cov khoom seem: 4-20 mg / m³ (raws li cov khoom ntawm lub lim cartridge)
4. Cua inlet kub yuav tsum tau: tsawg dua 60 ℃
5. Ntshuam concentration txwv: tsawg dua 800mg / m3, yog hais tias cov concentration siab dhau lawm, yuav tsum tau ntxiv cov cuab yeej ua ntej cyclone
6. Ua hauj lwm tsis kam: tsis muaj-load lub xeev: 300 ~ 600Pa ntawm 20 °;300 ~ 1500Pa nyob rau hauv ib txwm ua haujlwm;
7. Tag nrho cov khoom hnyav: 1000Kg
8. Tag nrho cov khoom siv fais fab: 15KW
9. Fais fab mov voltage: 380V (AC), 50Hz (GB)
10. Cua mov siab: 0.5 ~ 0.8Mpa;Tus nqi ntws:> 0.5m³ / min
11. Lub suab nrov: tsawg dua 72 decibels kuaj pom los ntawm 1 meter deb (nrog lub suab nrov);tshwj tsis yog rau lub sijhawm pulse blowback suab nrov
